Chain Link Fencing for Perimeter Security, Boundaries, and Sports Enclosures
Supplied in GI and PVC-coated options. Diamond-pattern mesh in various gauges and heights. Economical, durable, and quick to install.
.avif)
What is Chain Link Fencing?

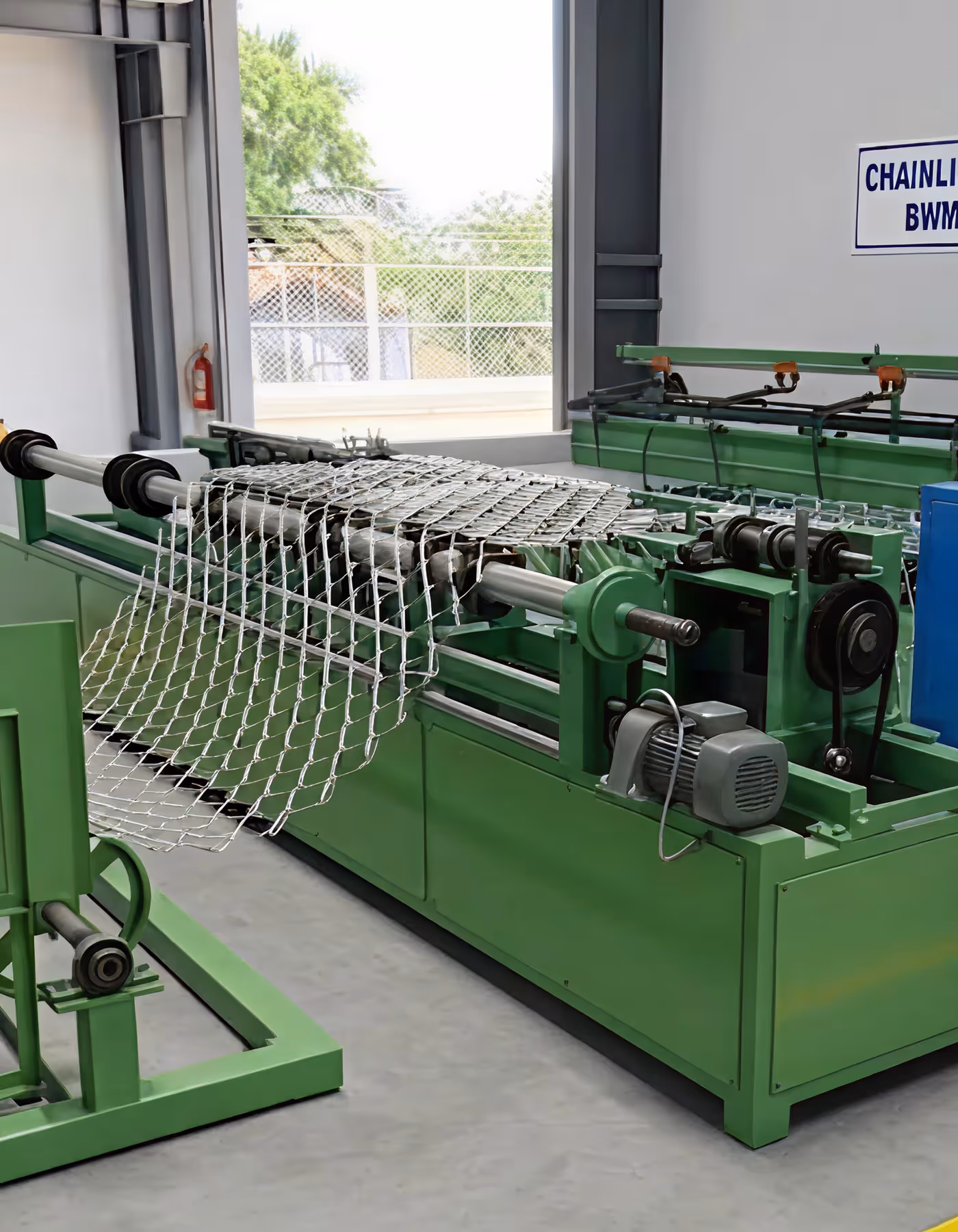

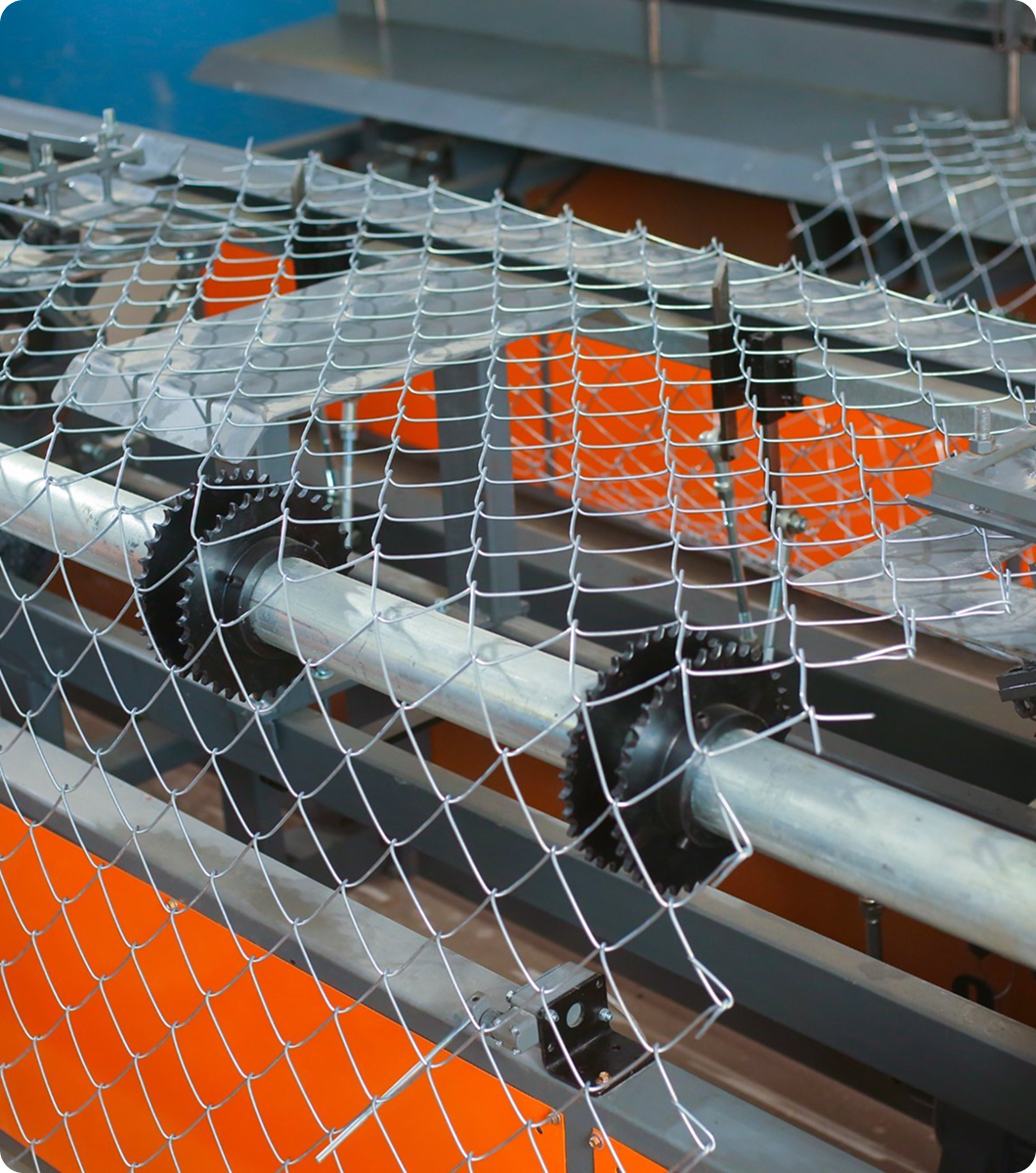

Chain link fencing is made by bending and interlocking galvanised or PVC-coated steel wires into a diamond (rhombus) pattern. The resulting flexible, strong mesh can be stretched between posts to create secure perimeter fencing for properties, sports facilities, farms, and industrial sites.
Standard zinc-coated steel wire for outdoor durability. The most economical option for boundary fencing, with a typical life of 15-20 years.
Galvanised wire with an additional PVC coating for enhanced corrosion resistance and aesthetic appearance. Available in green, black, and other colours.
We supply complete fencing packages including GI/MS posts, straining wire, turnbuckles, tie wire, and barbed wire top. Ready for installation.
Technical Specifications
We engineer precision metal products for diverse industrial applications.
Wire Gauges
8 gauge (4.06 mm) to 14 gauge (2.03 mm)
Mesh Opening
25 mm to 75 mm (diamond size)
Heights
900 mm (3 ft) to 3600 mm (12 ft)
Roll Lengths
Standard 15 metres and 30 metres
Materials
Galvanised Iron (GI), PVC-coated GI
PVC Colours
Green, Black, White, Brown (custom colours on bulk order)
Standards
As per IS 2721 / ASTM A392
.avif)
Applications
Used for residential and commercial boundary fencing, industrial perimeter security, sports grounds and playgrounds, highway median fencing, railway boundary walls, agricultural land fencing, poultry farms, kennels, and temporary site fencing.
Why Banaraswala ?
Controlled weaving, calibrated wire, and in‑process checks. We verify aperture, wire dia, open area per batch and can frame/cut panels to your drawings. 35+ years of supply experience across India. SS 316 options for corrosive zones and hygiene‑critical services.
Frequently Asked Question
Trusted in more than 100 countries and 4 million customers.
For residential boundary fencing, 12-14 gauge with 50 mm mesh is standard. For security fencing, 8-10 gauge with 37.5-50 mm mesh provides more strength. For highway and industrial use, 10 gauge is recommended.
Residential: 1200-1500 mm (4-5 ft). Commercial/Industrial: 1800-2400 mm (6-8 ft). High-security: 2400-3600 mm (8-12 ft), usually with barbed wire top.
Yes. We can supply complete fencing solutions including GI angle-iron posts, concrete post accessories, straining wire, turnbuckles, and barbed wire. Installation guidance is available.
GI fencing in normal conditions lasts 15-20 years. PVC-coated fencing lasts 25+ years due to the additional corrosion barrier. Coastal areas with salt exposure will reduce the lifespan of plain GI fencing.
Yes. Share your perimeter length, required height, and site conditions and we will provide a complete material estimate with pricing.
